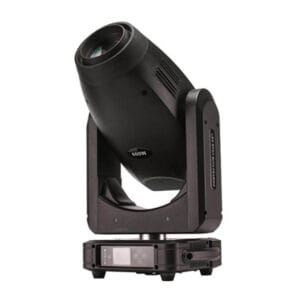

HL-MB260

260W Moving Head Light

260W Moving Head Light with an extended 2,000-hour life span, produces a straight, sharp 2˚ beam in any application, making it a cost-saving investment.

Digital position correction technology offers fast and smooth movement. A wide range of mid-air effects is achievable via static gobo wheel (16 gobos) and color wheel (14 colors) in conjunction with two rotating 8- or 24-facet prisms.

The fixture’s compact housing makes it suitable for multiple applications, including events, installations, TV shows, and rentals.

其他信息

Power Supply

320W

Light Source

OSRAM MSD Platinum 9R LL (Long-Life)

Beam angle

2°-6°

Expected Life

2,000 hours

Fixture Specification

H:565mm,L:252mm,D:252mm

Technical Specification

Light Source
  • Light Source: OSRAM MSD Platinum 9R LL (Long-Life)
  • Life expectancy: 2,000 hours
Optical System
  • The advanced optical system ensures clear, sharp image quality
  • High-efficiency optical system
  • Beam angle: 2°
Control & Program
  • 4-button touch panel
  • Display: Color display
  • Protocols: DMX512,Master/Slave
  • DMX Modes: 2
  • Control channels: 16, 20
  • Pan/Tilt resolution: 16-bit
  • Electronic ballast
PAN & TILT
  • Pan movement: 540°
  • Tilt movement: 270°
  • Automatic Pan/Tilt position correction
Static Gobos
  • 1x static gobo wheel with 16 gobos plus open
Color Wheel
  • 1x color wheel with 14 colors plus white
Electrical & Connectors
  • Power supply with electronic auto-ranging
  • Input voltage range: AC 100-240V, 50/60Hz
  • Power consumption: 320W
  • Power cord out
  • Data in/out: 3-pin XLR
Fixture Specification
  • Height: 565mm (22.2”)
  • Width: 350mm (13.8”)
  • Depth: 253mm (10.0”)
  • Weight: 17kg (39.7lb)
Work environment
  • Maximum ambient temperature: 40°C
  • Maximum surface temperature: 65°C
  • Minimum operating temperature: 0°C
Approvals
  • CE compliant
Installation
  • Horizontal or vertical mounting
  • The operating position is universal
  • 2 pairs of 1/4-turn locking points under the base
  • 2x fast-lock clamps with 1/4-turn locks for 50mm truss
  • Safety cable attachment point
Included items
  • User Manual
  • Power Cable
  • 2x clamps with 1/4-turn locks for 50mm truss
  • Signal line: 3-pin signal line
Optional Accessories (with item code)
  • Raincover:
  • Clamp:
  • Safety cable:
  • Signal line: 3-pin signal line

Effect Demonstration

hl mb260 (10) hl mb260 (11)

Product Video

Dimensions

hl mb260 (1)

Downloads

DMX Channel
Product Details
Fixture Library
Software Updates
