HL-ML230BS

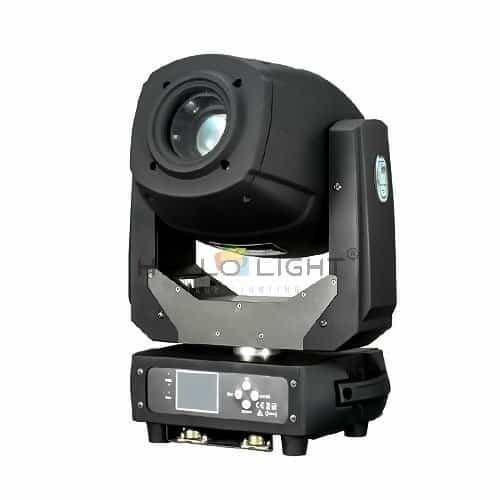

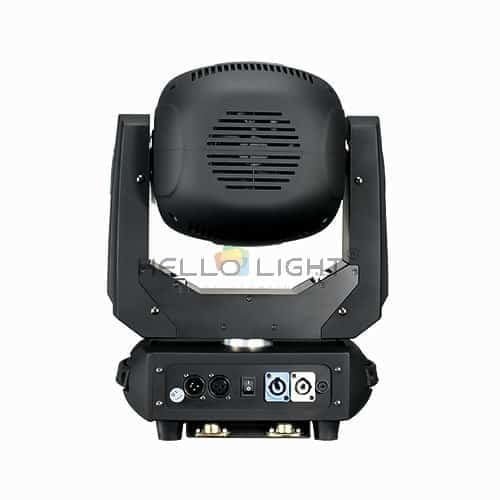

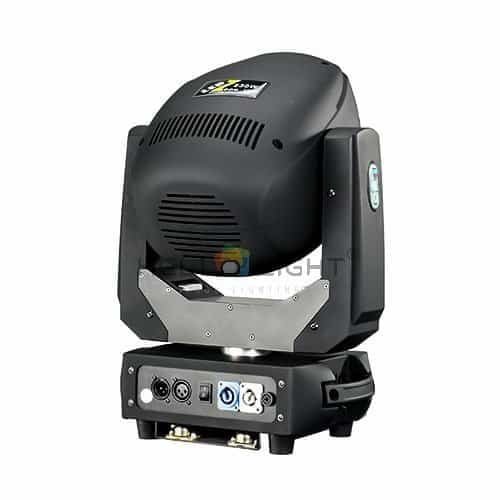

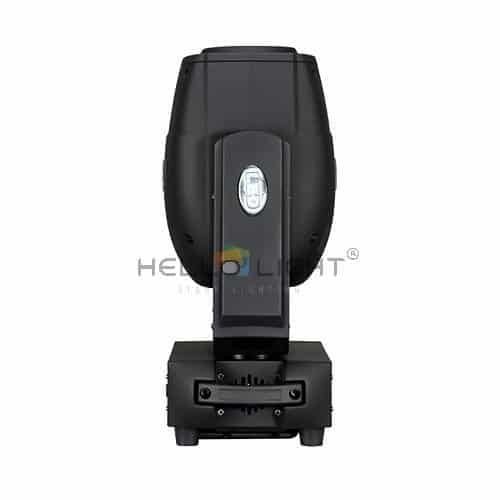

HL-ML230BS 230W LED Spot Moving Head Light

分类

230W Spot&Beam LED Moving Head Light is small and portable, with powerful light output, energy-saving, and environmental protection that integrates powerful beam and washing functions. Adopts 230W LED. A circular reflector mirror can create a mirrorball effect with beam light spotting on the mirror. Equipped with an electronic linear zoom system, the zoom range is 8°~15°, and the color is stable and uniform in the dimming range, easy to create a wonderful dynamic world. Outstanding strobe effect with variable speed, 0-100% smooth dimming, to meet the washing effect of wider applications.



Features

  • Light source: 230W High power LED
  • Power consumption:260W
  • Color wheel: one color wheel,7kinds of color chips in one color wheel
  • Static Gobo:7gobos+OPEN
  • Rotation Gobo:7gobos+OPEN
  • Effect Wheel: two Effect prism, one Rotation six prism, one Rotation five prism effect move, Bi-directional rotation
  • Electronic linear zoom system
  • Zoom range: 11°~25°
  • 0~100% smooth dimming
  • Fast and mute operating
  • Flicker-free management
  • Dust-proof and oil-proof design
Product Price:$1.00

其他信息

Technical Specification
Light source
  • Light source: 200W High power LED
  • LED life expectancy: 20000 hours
  Optical system
  • The advanced optical system ensures clear and large-range beam & wash effect
  • High-efficiency zoom optical system, ratio 1:6
  • Zoom range: 11° – 25°
  Control and Program
  • 4-buttons
  • Display: LCD display
  • Control mode: DMX512 /master-Slave/Auto run
  • DMX Protocol modes: 4
  • Control channels: 6,18
  • Pan/Tilt Resolution: 16 bit
  • Dimmer: 16 bit
PAN & TILT
  • Pan movement: 540°
  • Tilt movement: 240°
  • Automatic Pan/Tilt position correction
  Electrical and Connectors
  • Power supply with electronic auto-ranging
  • Input voltage range: AC 100-240 V, 50/60 Hz
  • Power consumption: 260 W
  • Power Connector input
  • Data in/out: 3-pin XLR
  Fixture Specification
  • Height: 485 mm
  • Width: 355 mm
  • Depth: 390 mm
  • Weight: 14 kg
  Work Environment
  • Maximum ambient temperature: 40°C
  • Maximum surface temperature: 65°C
  • Minimum operating temperature: 0°C
  Approvals
  • CE Compliant
  Installation
  • Horizontally or vertically mounting are available
  • The operating position is universal
  • 2 pairs of 1/4-turn locking points under the base
  • 2 x fast-locked clamps with 1/4-turn locks for 50-millimeter truss
  • Safety cable attachment point
  Included Items
  • Circular reflector mirror
  • User Manual
  • Power Cable
  • 2 pairs of 1/4-turn locking points under the base
  Optional Accessories
  • Clamps:
  • Signal Line:3-pin signal line
  • Safety cable :
Effect Demonstration
