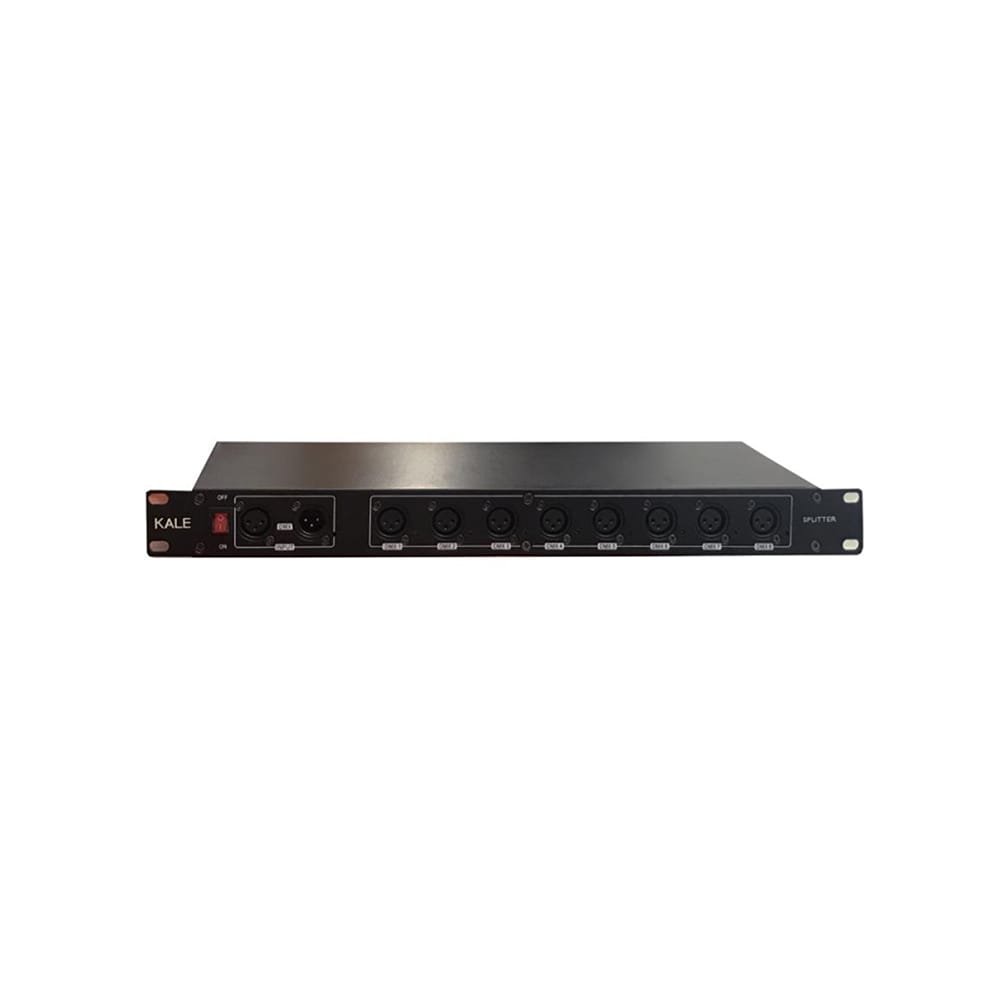

Fully compliant with DMX-512 (1990) specification.
Inputs and outputs are RS-485 standard.
3-pin XLR input and a passive loop.
The output of the DMX splitter is 8 isolated lines.
Inputs are isolated from outputs >1000VDC.
Outputs are isolated from each other >1000VDC.
Power supply, 90-240VAC 50Hz / 60Hz, 15W.
1U 19-inch construction.
If you are looking for a stage lighting solution, we will provide you with a one-stop solution.
