Light Source

• Light Source: 19 × 40W OSRAM RGBW 4-in-1 High-Brightness LEDs
• Individual LED Pixel Control
• LED Lifespan: 50,000 hours

Electrical Specifications

• Input Voltage: AC100–240V, 50/60Hz
• Power Consumption: 850W

Optical System

• Zoom Angle: 7°–42°
• PMMA Lens with Glass Light Guide Pipe
• Front Lens: Infinite Rotation
• Functions: Wash / Beam / Graphic / Dynamic Effects

Color & Effect System

• RGBW Color Mixing
• Adjustable Color Temperature: 2500K–10000K
• LED Halo Ring with Rainbow Effect
• Vortex Effect
• Kaleidoscope Effect
• Variable Built-in Dynamic Effects
• 4 Linear Dimming Curves
• 2 Color Modes (RGBW)

Dimming & Strobe

• Dimming: Smooth Linear Dimming
• Strobe: 1–25 Hz
• Random Strobe
• Pulse Strobe

Movement Control

• Pan: 540°
• Tilt: 216°
• High-Precision Magnetic Encoder Positioning

Control System

• Control Modes:
  • DMX512
  • RDM
  • Master-Slave Mode
• DMX Channel Modes: 21CH / 35CH / 43CH / 78CH / 92CH / 97CH
• Display: 1.77-inch OLED Display
• Display Flip Function
• Password Protection (1111)
• Software Upgrade via DMX Connector

Cooling System

• Intelligent Cooling System
• Adjustable-Speed Cooling Fans
• Overheating Protection

Protection & Housing

• Protection Rating: IP65
• Housing: Die-Cast Aluminum with Fire-Resistant Enclosure
• Power Connector: Seetronic PowerCON TRUE1 IP
• DMX Interface: 3-Pin XLR In/Out (Optional 5-Pin XLR)
• Optional Folding Clamp for Easy Installation

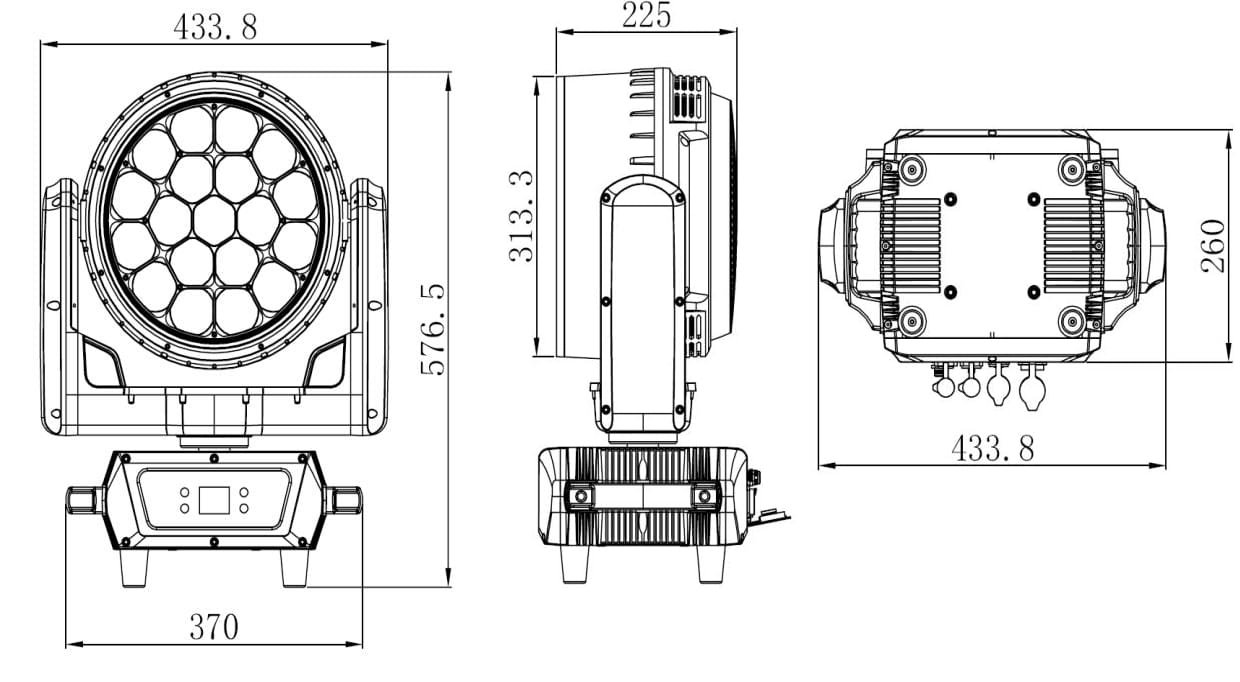

Physical Specifications

• Fixture Size: 432 × 333 × 485 mm
• Carton Size: 640 × 360 × 530 mm
• Net Weight: 22.5 kg
• Gross Weight: 26 kg
