HL-PL54S

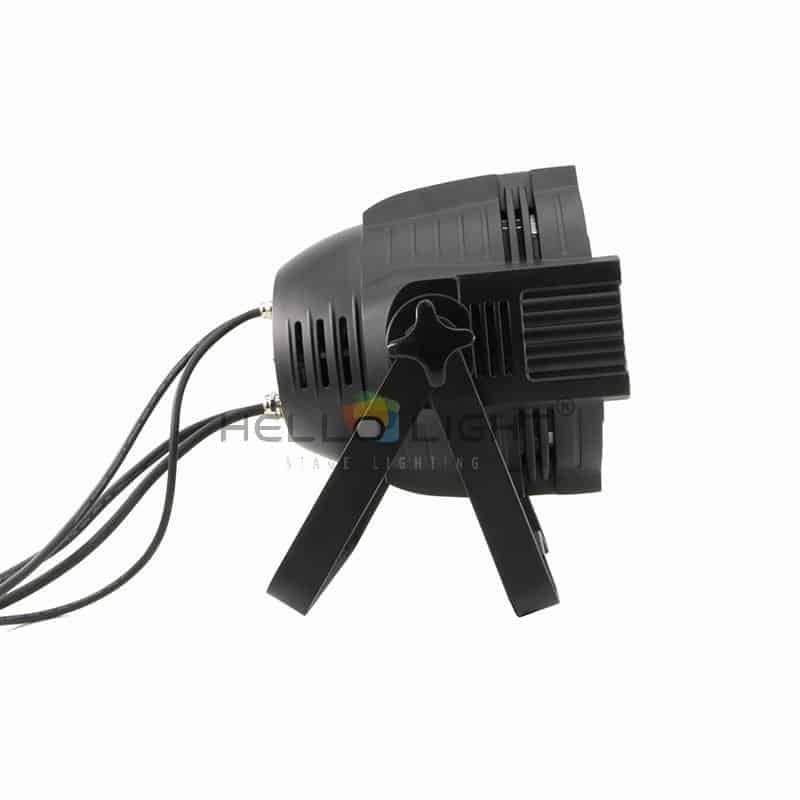

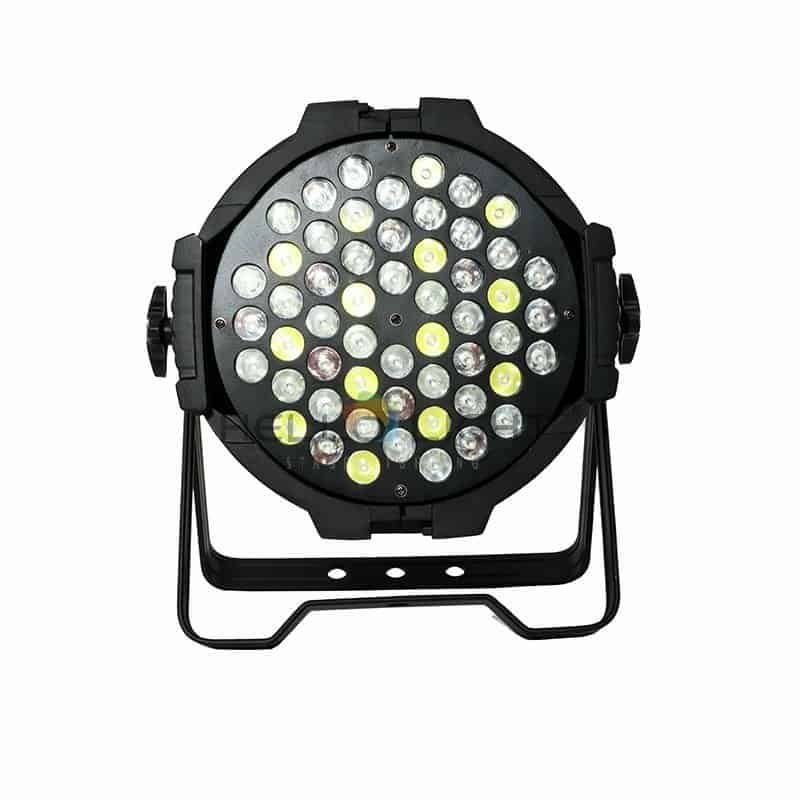

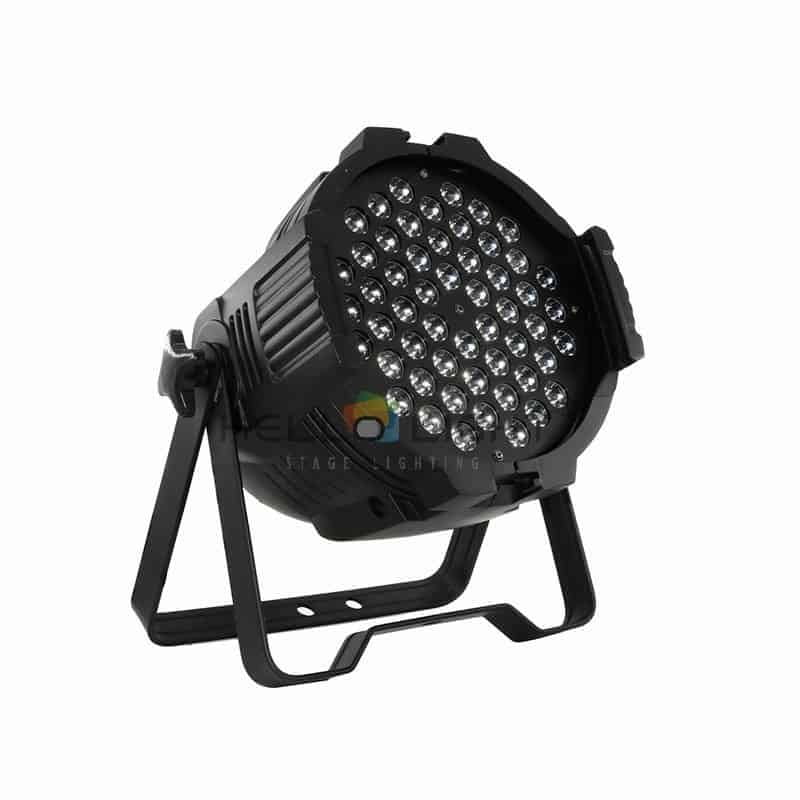

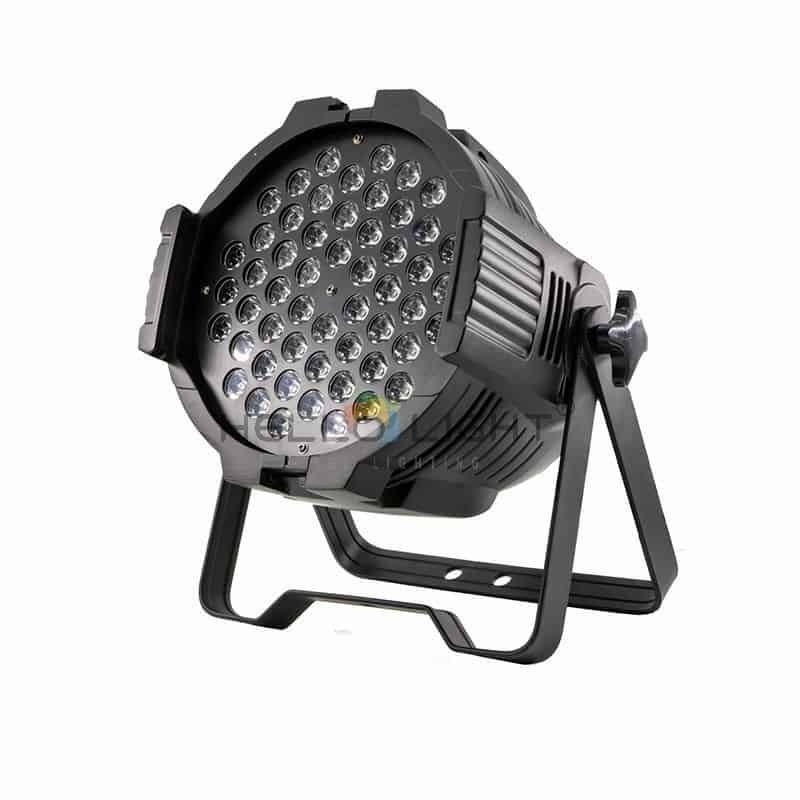

HL-PL54S 54PCS LED RGBW Par/Can Light

HL-PL54S 54PCS LED RGBW Par/Can Light using 54 pcs 3W RGBW LED, combines powerful output, shiny beam, and colorful wash into its solid body. In order to meet the professional’s requirement, we designed Coolie PLW-54L as a versatile soldier, featuring 0~100% smooth dimming with 4 variable dimming curves, an outstanding strobe effect with variable speed, and variable preset macro effects, and smooth color mixing&changing, to create a psychedelic effect. With robust construction and IP66 ratings, the Coolie 545 is designed for both indoor and outdoor use. Its durable aluminum die-casting housing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations from dusty deserts to rainy fields, from stage lighting to outdoor architectural use. For better protection and transportation, flight cases are your option.



Features

  • Light source: 54 x 3W RGBW LED
  • Beam Angle: 19°
  • With powerful beam and wash effects
  • Excellent color mixing effect
  • Preset program in stand-alone mode
  • 4 dimming curves
  • 0~100% smooth dimming
  • Outstanding strobe effect with variable speed
  • Dust-proof and oil-proof design
  • Protection Rating: IP65
  • Flicker-free management
  • Maximum connected quantity of IEC:
    • 3 sets (120V, 60Hz)
    • 5 sets (230V, 50Hz)
  • Maximum connected quantity of POWER CON:
    • 6 sets (120V, 60Hz)
    • 11 sets (230V, 50Hz)
Product Price:$1.00

其他信息

Technical Specification

Light source
  • Light source: 54 x 3W RGBW LED
  • LED life expectancy: 20000 hours
  Optical system
  • The advanced optical system ensures a clear and large-range beam & wash effect
  • Beam Angle: 19°
  Control and Program
  • 4-buttons
  • Display: LED display
  • Protocols: DMX, Master/Slav,RDM
  • DMX Protocol modes: 3
  • Control channels: 4,8
  • Upgrade the firmware via the DMX link
  Electrical and Connectors
  • Power supply with electronic auto-ranging
  • Input voltage range: AC 100-240 V, 50/60 Hz
  • Power consumption: 170W
  • Power cord out
  • Data in/out: 3-pin XLR socket
  Fixture Specification
  • Height: 400 mm
  • Width: 300 mm
  • Depth: 300 mm
  • Weight: 5 kg
  Work Environment
  • Maximum ambient temperature: 40°C
  • Maximum surface temperature: 65°C
  • Minimum operating temperature: 0°C
  • Protection Rating: IP66
  Installation
  • Horizontally or vertically mounting are available
  • The operating position is universal
  • The feet supported by 3 locking points
  • Safety cable attachment point
  Included Items
  • User Manual
  • Power Cable
  • The feet supported by 3 locking points
  Optional Accessories (with item code)
  • Flight Case:
  • Clamps:
  • Signal Line:3-pin signal line
  • Safety cable

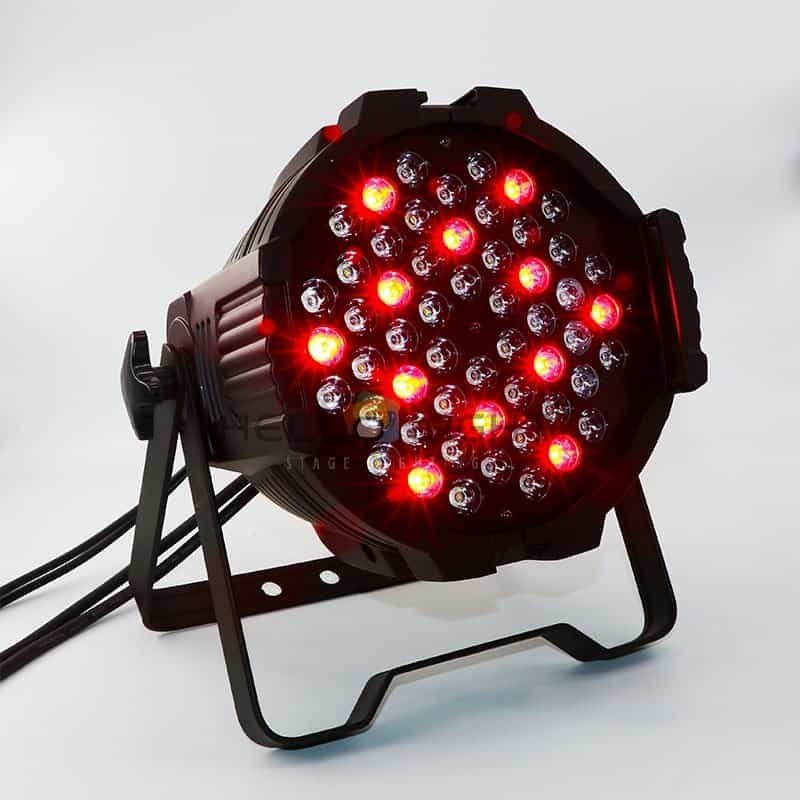

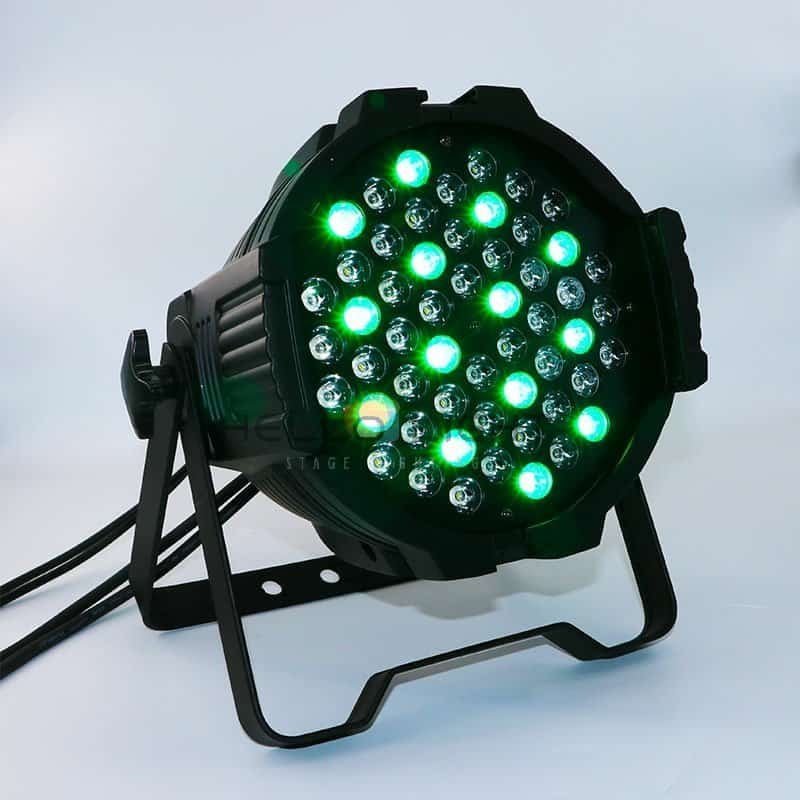

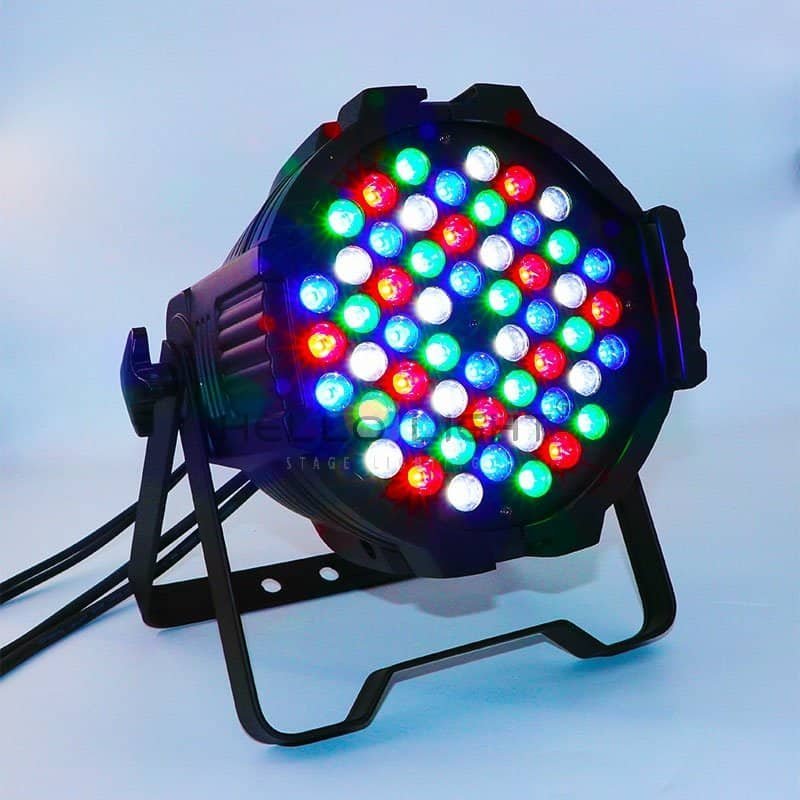

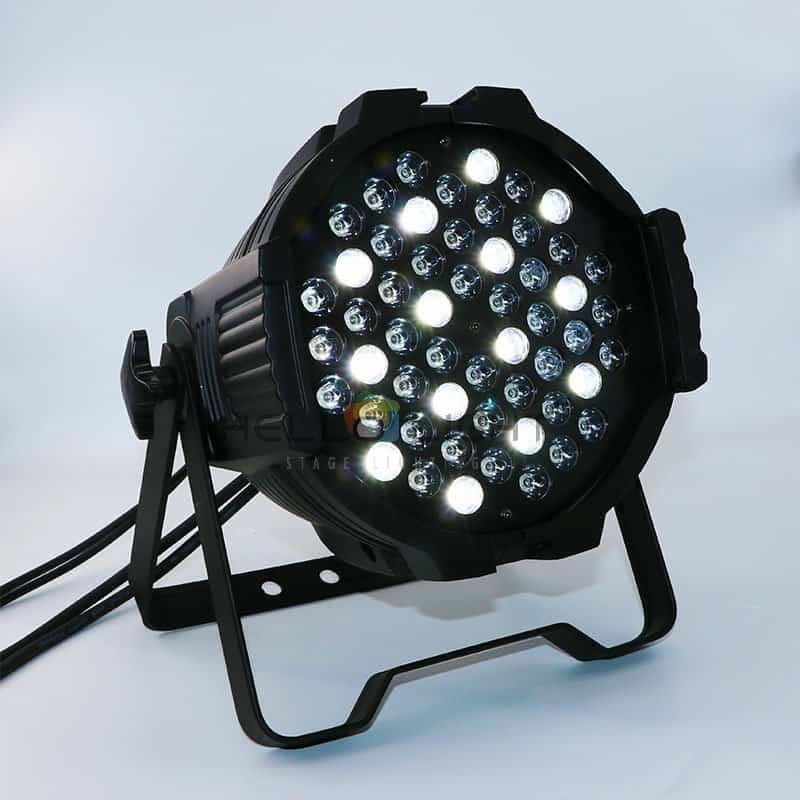

Effect Demonstration

hl lps54 1jpg (2)hl lps54 1jpg (3)hl lps54 1jpg (4)hl lps54 1jpg (5)hl lps54 1jpg (1)

hl pl54s 54pcs led rgbw parcan light (2) hl pl54s 54pcs led rgbw parcan light (3)

Product Video

Dimensions

Accessories

Downloads

Manual
DMX Channel
Product Details
Fixture Library
Software Updates

libraries download
