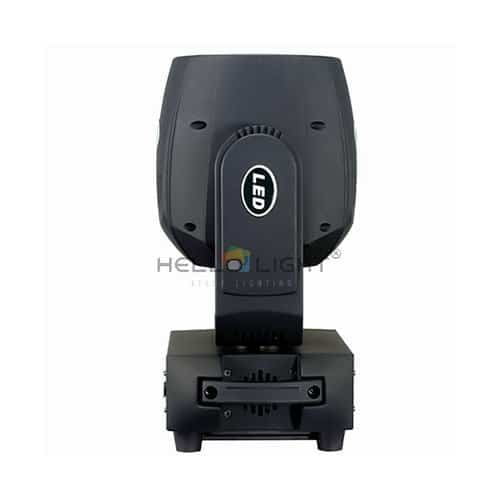

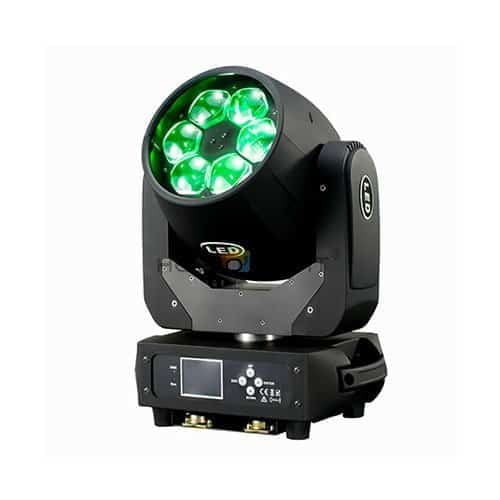

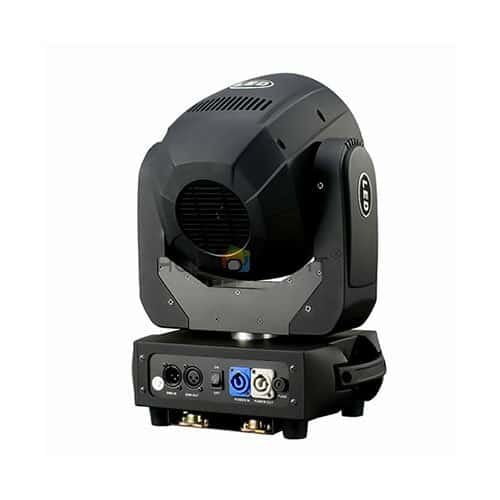

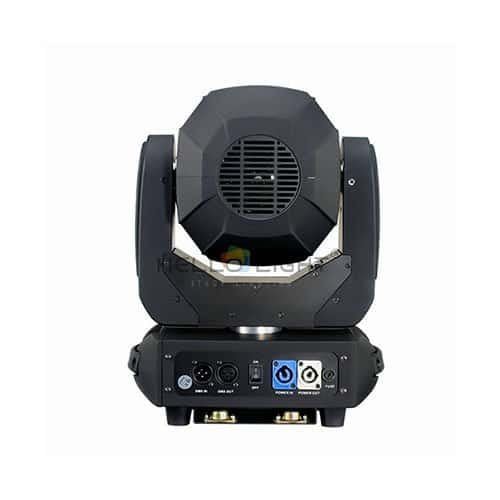

HL-ML6S40 6x40W LED Moving Head Light

HL-ML6S40

HL-ML6S40 6x40W LED Moving Head Light

分类 Moving Head Lights, Wash

HL-ML6S40 6x40W LED Moving Head Light individual control of each RGBA pixel. With a circular reflector mirror, can create a mirrorball effect with beam light spotting on the mirror. Equipped with an electronic linear zoom system, the zoom range is 4°~36°, and the color is stable and uniform in the dimming range, easy to create a wonderful dynamic world. Outstanding strobe effect with variable speed, 0-100% smooth dimming, to meet the washing effect of wider applications.

Features

Light source: 6x40W RGBA LED
With powerful beam and wash effects
Individual control of each RGBA pixel
The outstanding color macro effect
Electronic linear zoom system
Zoom range: 4°~36°
With circular reflector mirror, can create a mirrorball effect with beam light spotting on the mirror
Outstanding strobe effect with variable speed
0~100% smooth dimming
Fast and mute operating
Flicker-free management
Dust-proof and oil-proof design

Product Price：$1.00

其他信息






Light source

Light source: 6x40W RGBA LED
LED life expectancy: 20000 hours

Optical system

The advanced optical system ensures a clear and large-range beam & wash effect
High-efficiency zoom optical system, ratio 1:6
Zoom range: 4° – 36°

Control and Program

4-buttons
Display:2.4Inches LCD display
Protocols: DMX512
DMX Protocol modes: 4
Control channels: 10,17
Pan/Tilt Resolution: 16 bit
Dimmer: 16 bit

PAN & TILT

Pan movement: 540°
Tilt movement: 190°
Automatic Pan/Tilt position correction

Electrical and Connectors

Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 255 W
Power Connector input
Data in/out: 3-pin XLR

Fixture Specification

Height: 440 mm
Width: 360 mm
Depth: 320 mm
Weight: 11.5 kg

Work Environment

Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals

CE Compliant

Installation

Horizontally or vertically mounting are available
The operating position is universal
2 pairs of 1/4-turn locking points under the base
2 x fast-locked clamps with 1/4-turn locks for 50-millimeter truss
Safety cable attachment point
